Proposed MSL Landing Site in Miyamoto Crater
NASA/JPL/University of Arizona
Proposed MSL Landing Site in Miyamoto Crater
PSP_007704_1765  Science Theme: Future Exploration/Landing Sites
twitter  •  facebook  •  google+  •  tumblr

WALLPAPER
800
1024
1152
1280
1440
1600
1920
2048
2560

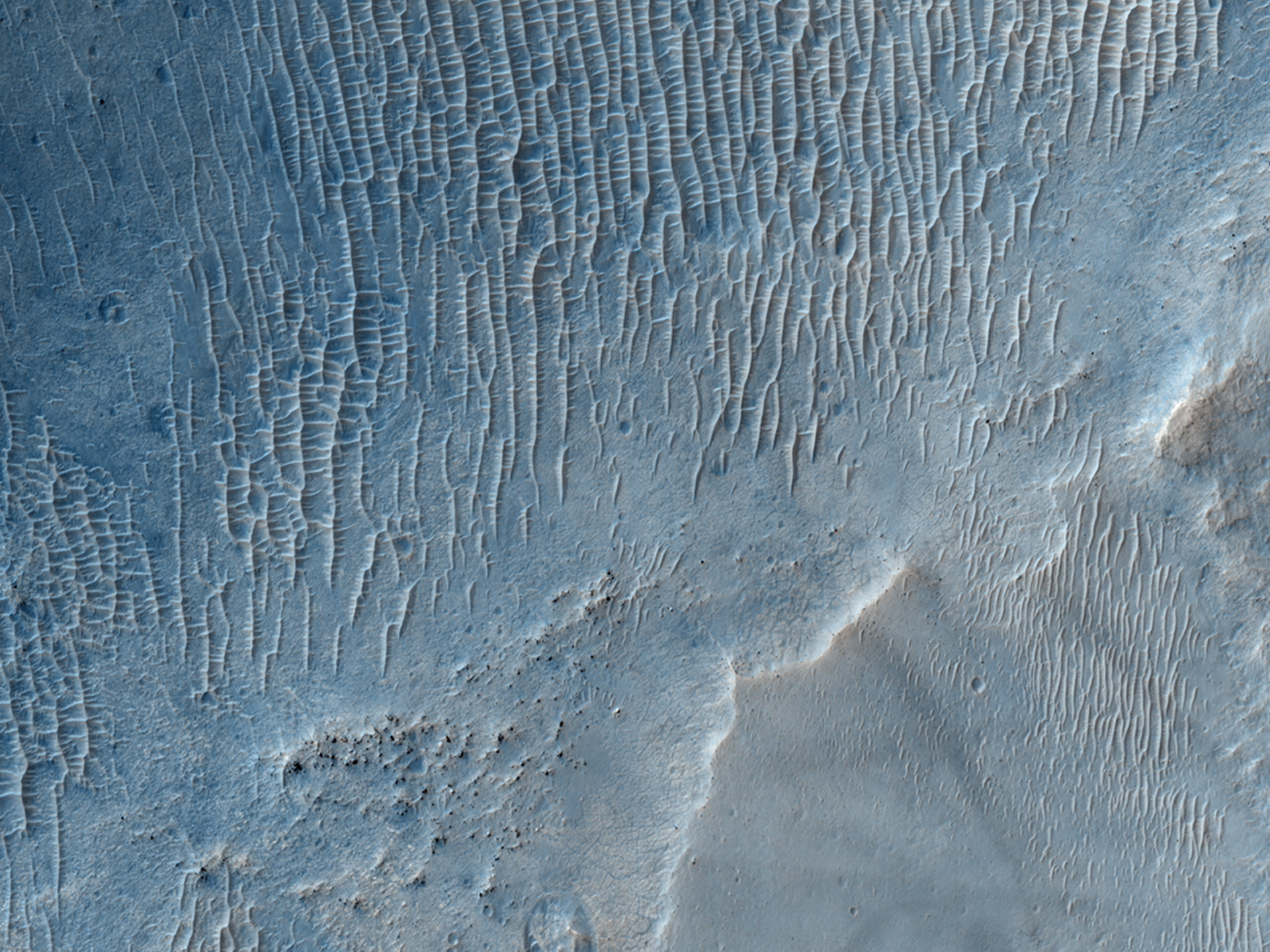

Miyamoto Crater is located in southwest Meridiani Planum (and southwest of the Mars Exploration Rover Opportunity landing site). This image shows fairly smooth plains and some areas covered by wind streaks.

The streaks suggest that wind is an active process here, depositing surface material downwind in this distinctive form.

This landing site is adjacent to the hematite-bearing plains unit where the Opportunity rover sits. The CRISM instrument has detected phyllosilicates (clay minerals) at this landing site, which scientists believe to have formed in the presence of water.

The Mars Science Laboratory rover would investigate the mineral diversity here, which includes phyllosilicates and sulfate minerals.Written by: Jennifer Griffes  (9 April 2008)

This is a stereo pair with PSP_008706_1765.

Acquisition date
18 March 2008

Local Mars time:
14:50

Latitude (centered)
-3.269°

Longitude (East)
352.183°

Range to target site
299.5 km (187.2 miles)

Original image scale range
30.0 cm/pixel (with 1 x 1 binning) so objects ~90 cm across are resolved

Map projected scale
25 cm/pixel and North is up

Map projection
Equirectangular

Emission angle:
26.5°

Phase angle:
70.0°

Solar incidence angle
47°, with the Sun about 43° above the horizon

Solar longitude
46.8°, Northern Spring

For non-map projected images
North azimuth:  96°
Sub-solar azimuth:  36.8°
JPEG
Black and white
map projected  non-map

IRB color
map projected  non-map

Merged IRB
map projected

Merged RGB
map projected

RGB color
non-map projected

JP2
Black and white
map-projected   (2277MB)

IRB color
map-projected   (956MB)

JP2 EXTRAS
Black and white
map-projected  (1285MB)
non-map           (998MB)

IRB color
map projected  (410MB)
non-map           (769MB)

Merged IRB
map projected  (624MB)

Merged RGB
map-projected  (599MB)

RGB color
non map           (736MB)
ANAGLYPHS
Map-projected, reduced-resolution
Full resolution JP2 download
Anaglyph details page

ADDITIONAL INFORMATION
B&W label
Color label
Merged IRB label
Merged RGB label
EDR products
HiView

NB
IRB: infrared-red-blue
RGB: red-green-blue
About color products (PDF)

Black & white is 5 km across; enhanced color about 1 km
For scale, use JPEG/JP2 black & white map-projected images
