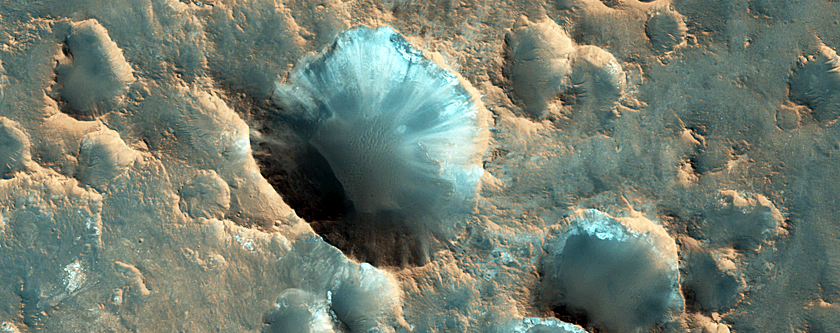

Terrain West of Clay-Bearing Units of Mawrth Vallis
ESP_013849_2030 Science Theme: Composition and Photometry

Image Products: All image links are drag & drop for HiView, or click to download

JPEG
Grayscale: map projected non-map
IRB color: map projected non-map
RGB color: non-map projected

JP2 DOWNLOAD
Grayscale: map-projected (226.6 MB)
IRB color: map-projected (116.4 MB)

JP2 EXTRAS
Grayscale: map-projected (111.6 MB),
non-map (111.3 MB)

IRB color: map projected (41.6 MB)
non-map (110.7 MB)

RGB color: non map-projected (95.2 MB)

Additional Image Information
Grayscale label Color label
Merged IRB label Merged RGB label
EDR products

About color products (PDF)
HiView main page
HiRISE Online Image Viewer

Observation Toolbox

Acquisition date:	10 July 2009	Local Mars time:	2:21 PM
Latitude (centered):	22.6 degrees	Longitude (East):	336.1 degrees
Range to target site:	285.2 km (178.2 miles)	Original image scale range:	57.1 cm/pixel (with 2 x 2 binning) so objects ~171 cm across are resolved
Map projected scale:	50 cm/pixel and North is up	Map projection:	EQUIRECTANGULAR
Emission angle:	0.3 degrees	Phase angle:	56.1 degrees
Solar incidence angle:	56 degrees, with the Sun about 34 degrees above the horizon	Solar longitude:	300.9 degrees, Northern Winter
For non-map projected products:
North azimuth:	97 degrees	Sub-solar azimuth:	316.7 degrees
For map-projected products
North azimuth:	270 degrees	Sub solar azimuth:	131.0 degrees

Usage Policy
All of the images produced by HiRISE and accessible on this site are within the public domain: there are no restrictions on their usage by anyone in the public, including news or science organizations. We do ask for a credit line where possible: Image: NASA/JPL/University of Arizona
